What is the Universal Adapter Plate?

Universal Adapter Plate (UAP) is the most versatile, turnkey RADOME system exclusively designed, manufactured, and certified (FAA STC) in-house by MAG engineers at our Florida Space Coast Technology Integration & Interoperability Innovation Center and is intended to house modular satellite communications equipment on next-generation C5ISR platforms.

UAP Capabilities

  • Common RADOME and UAP allow for accelerated aircraft certification
  • RADOME designed from the ground up for next generation Electronically Steered Antennas
  • Designed for multi-constellation BLOS communications systems
  • Universal design for multiple ESA manufacturers
  • Supports up to 100lbs of antenna equipment
  • Designed to fit the most popular Manned ISR aircraft

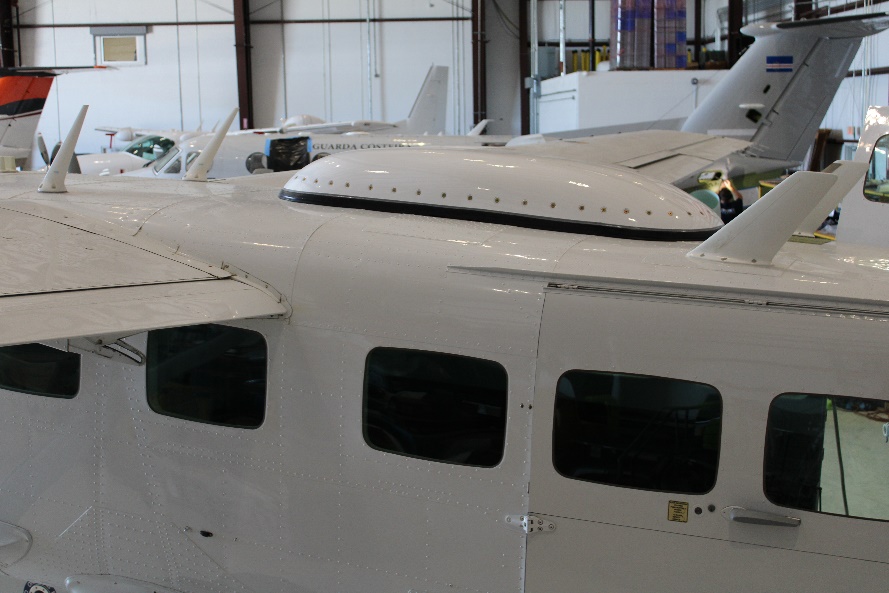

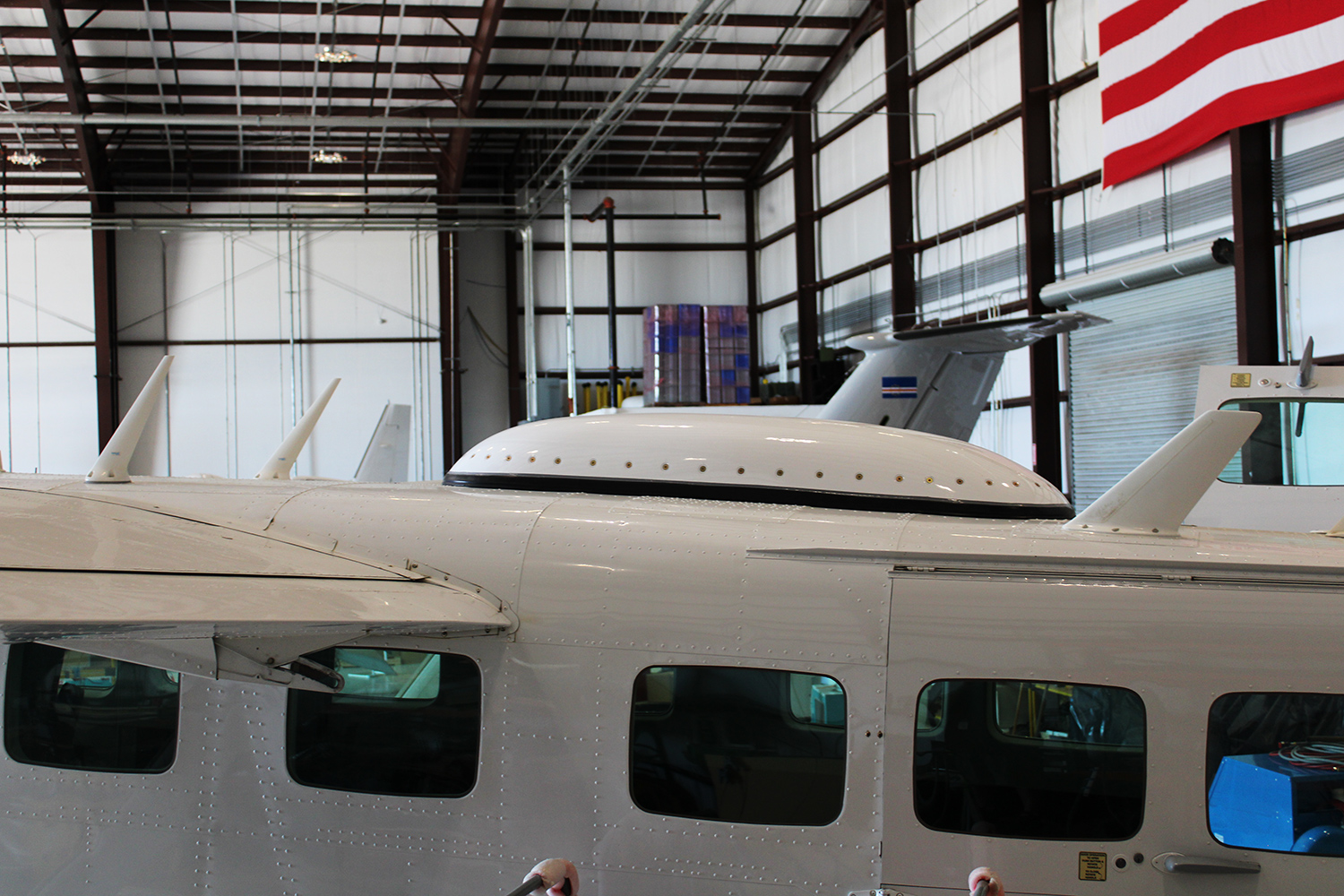

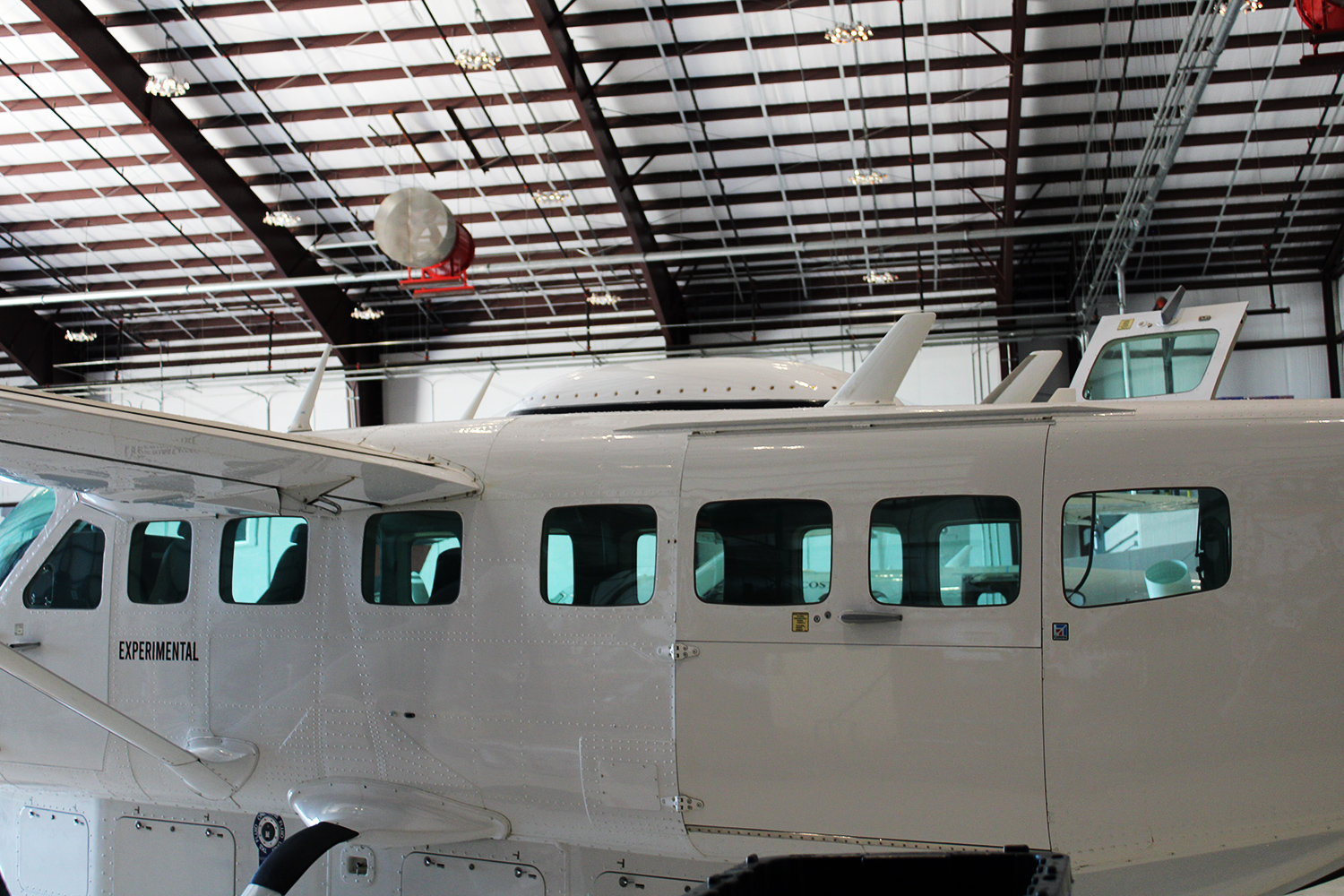

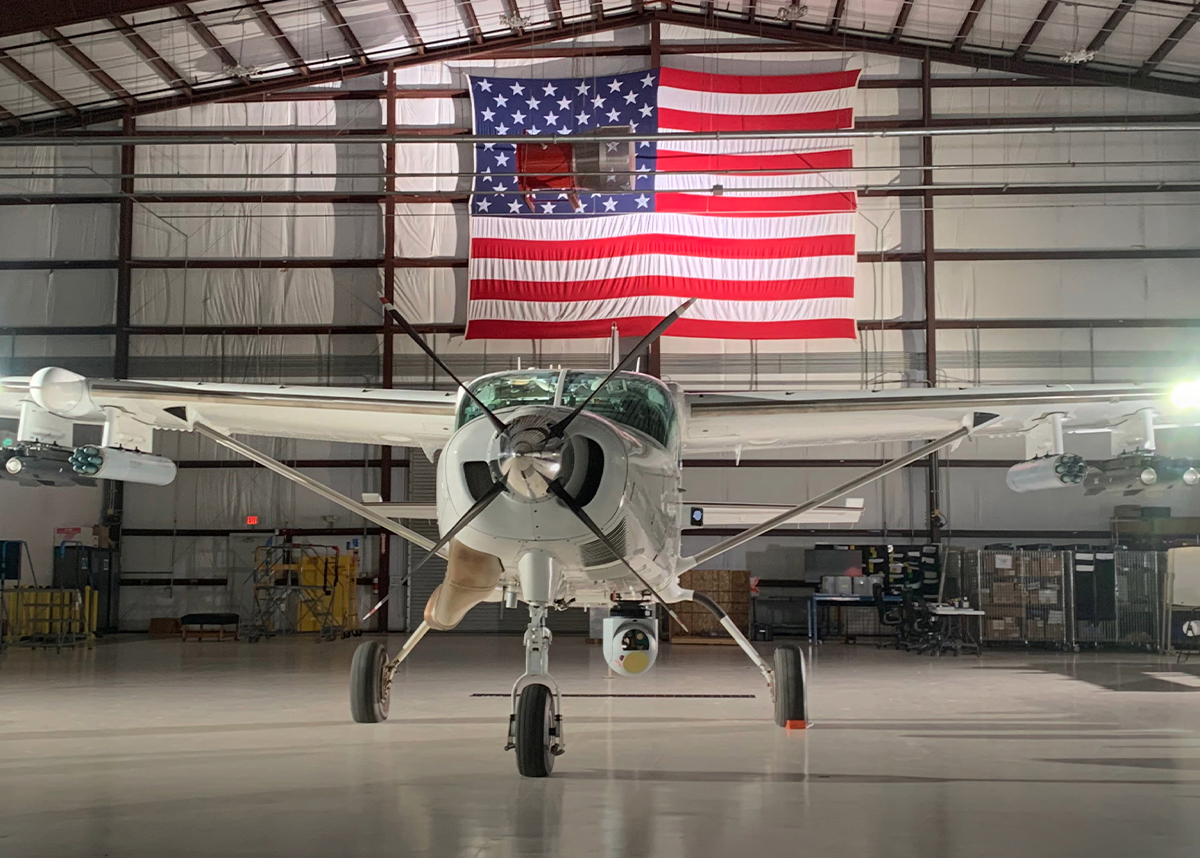

Current Installations

Universal Adaptor Plate (UAP)

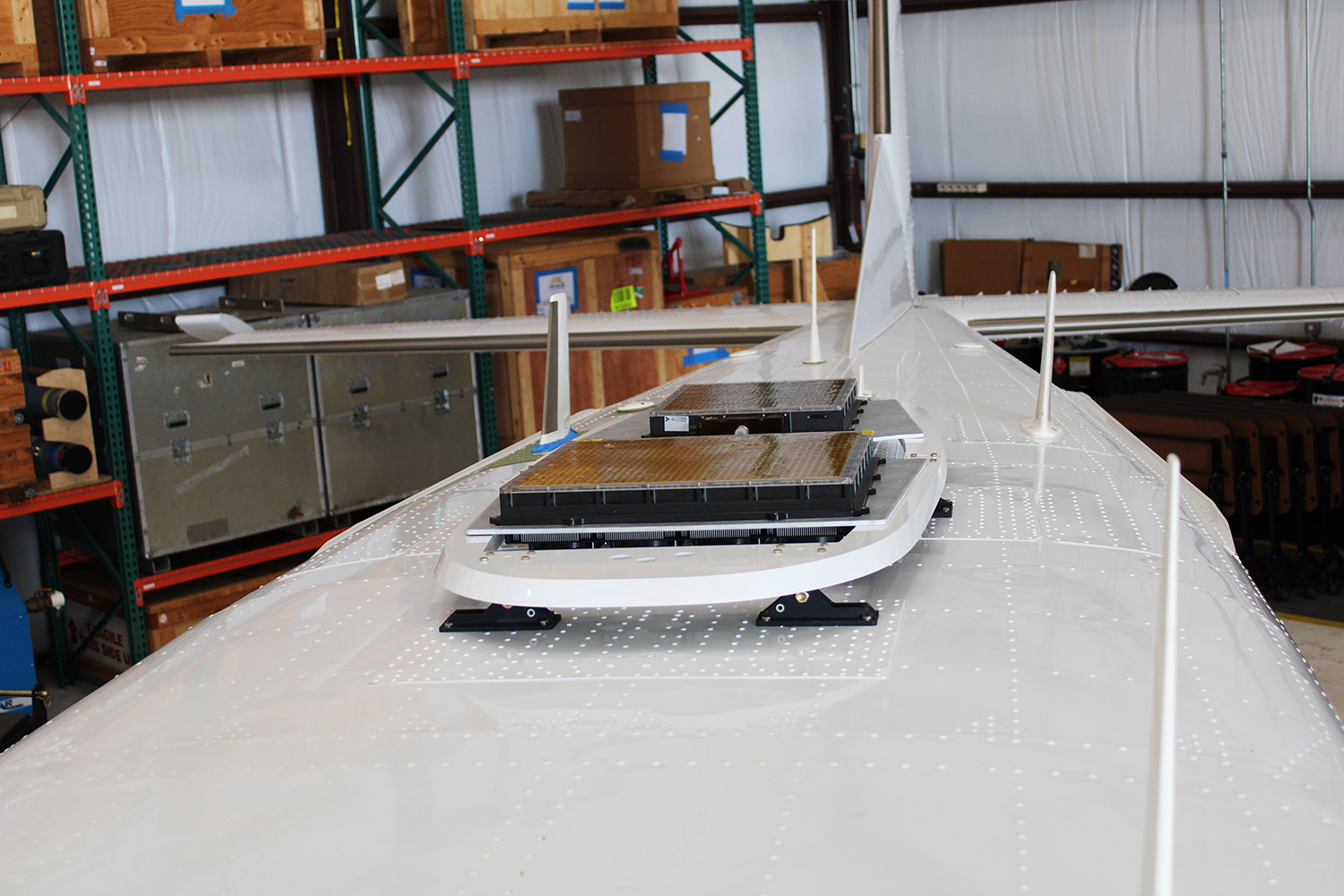

UAP houses custom modular satellite communications systems

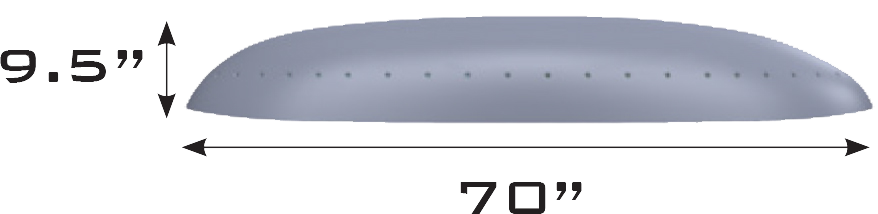

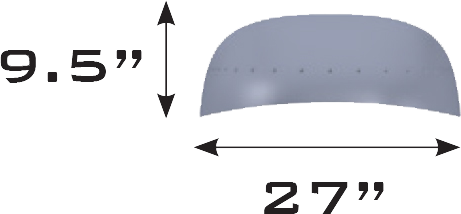

Untrimmed Exterior Dimensions

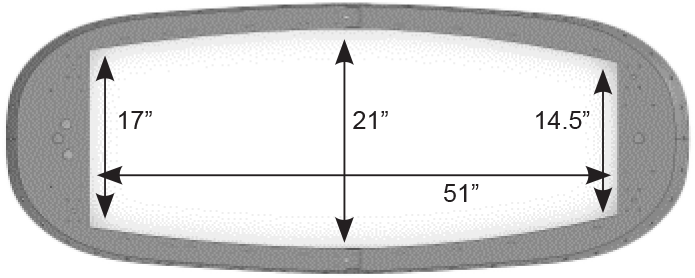

Perimeter design has additional 3″ of depth to allow for more equipment volume and better cooling options.

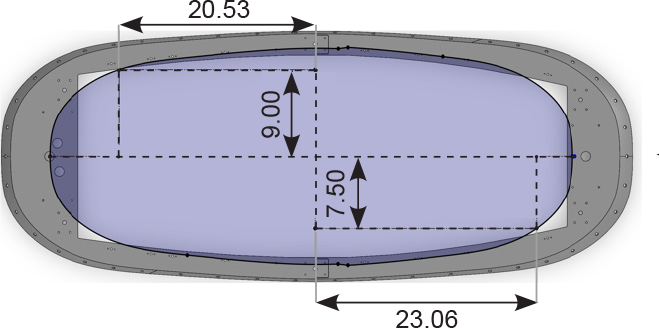

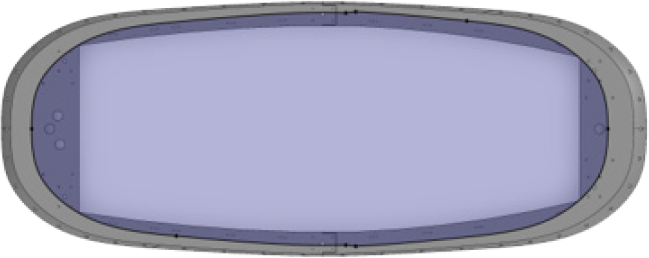

Interior area between UAP and RADOME at 1.25″
Interior area between UAP and RADOME at 2.25″

Where was the UAP Developed?

Exclusively designed, manufactured, and certified (FAA STC) in-house by MAG engineers at our Florida Technology Integration & Interoperability Innovation Center in Titusville, FL – Space Coast Regional Airport (KTIX)

Learn More about the Florida Technology Integration & Interoperability Innovation Center

Explore

Mission Integration Facilities

  • 50,000 ft² Technology Integration Area
  • 6,500 ft² Engineering / Design / Lab / SIL
  • 2,500 ft² Research and Development
  • 12,000 ft² Manufacturing / Machining / Kitting
  • 20,000 ft² Aircraft Integration / Training / Maintenance

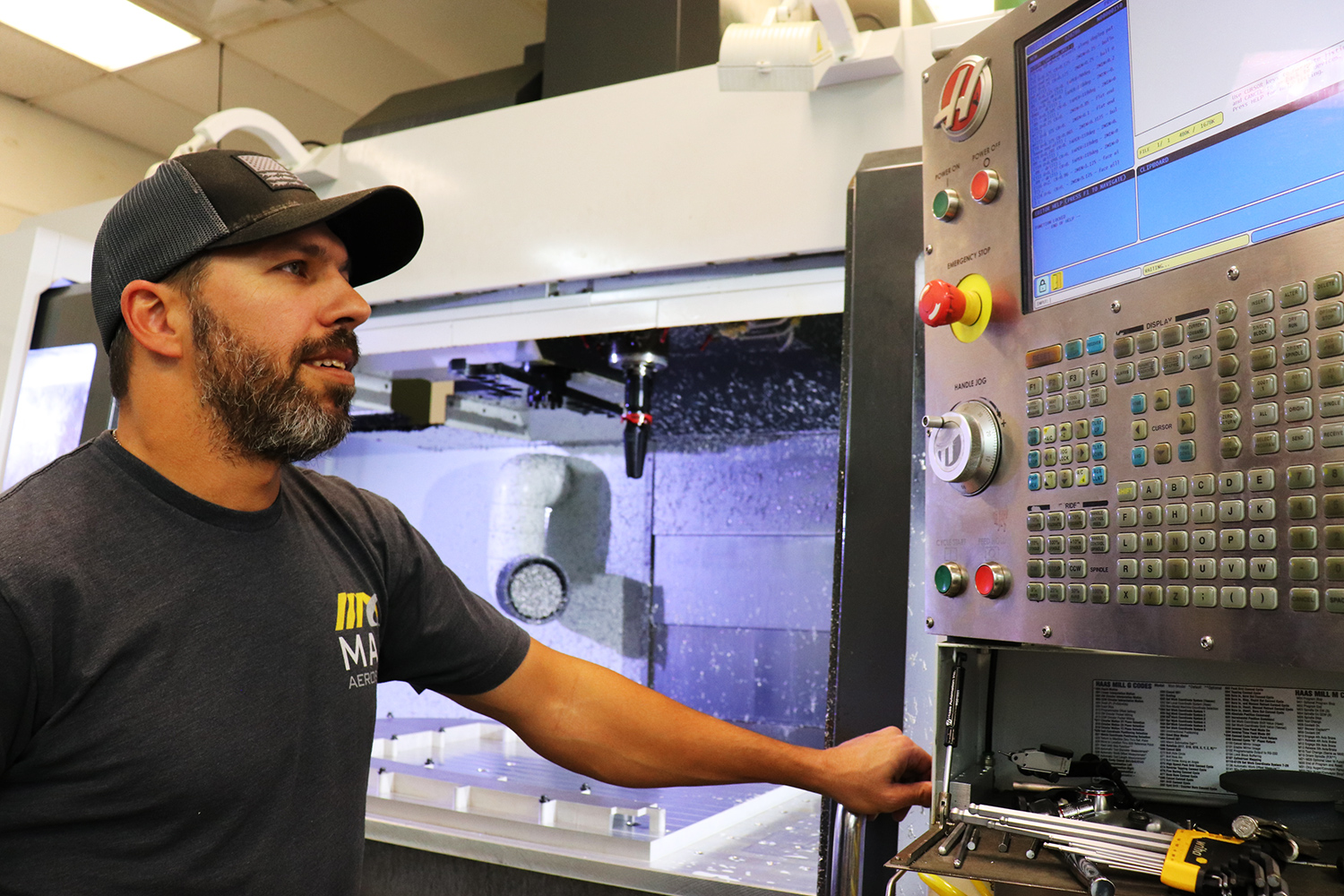

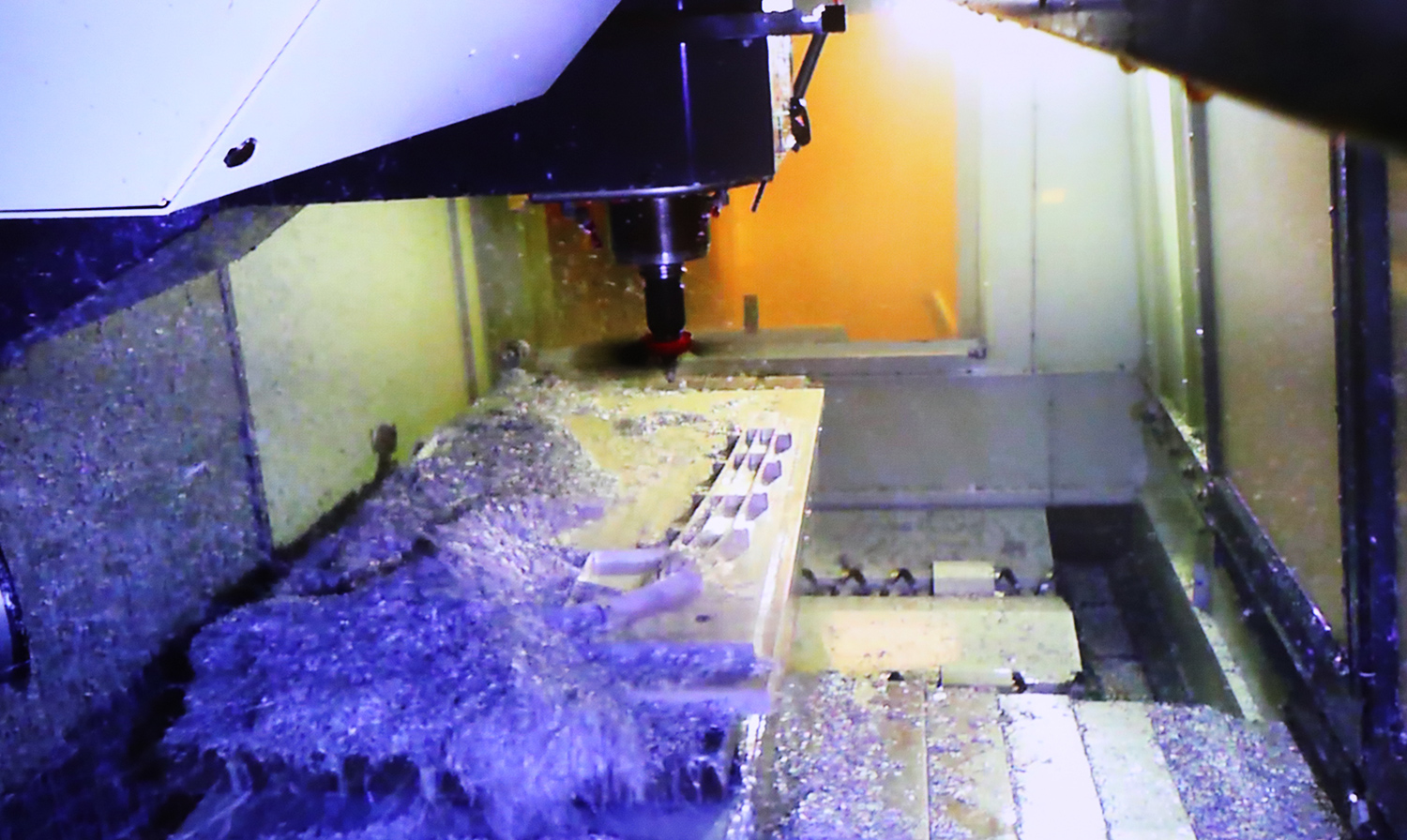

  • Machining Capability: Water Cutter / CNC System
  • 8,000 ft² Main Office

Certifications

AS9100D & ISO 9001:2015 Quality Management System

FAA Part 145 Repair Station

FAA Parts Manufacturer Approval (PMA)

30+ active FAA Supplemental Type Certificates (STC’s)

Technical Approach

  • Requirements Driven Process
  • Leverage Relevant Experience
  • Organic Engineering, Design, and Certification Expertise
  • In-house Prototyping, Manufacturing, and Fabrication Capability
  • Onsite Waterjet, CNC machines and FAA approved 3D printer
  • Onsite Material Control and Procurement
  • Industry Standards and Certified Production Processes

Experience and Past Performance

US Government Programs

Foreign Military Sales

Direct Commercial Sales

Contracted Logistical Support

Design, Engineering & Manufacturing

  • FAA / MIL-STD / AS9100 Design Practices
  • ANSI / IEEE / MIL-STD-100 Drawing Practices
  • Rapid Prototyping Engineering Change Process (ECP) Class I & II
  • Waterjet, CNC machines and FAA approved 3D printer

Analysis & Certification

Structural, Electrical Load, Finite Element, Co-Site Analysis

Technical Data Package (TDP) development Supplemental

Type Certificate (STC) development

Previous Solutions

  • Precision Strike / ISR / CASEVAC / MEDEVAC
  • Mobility / Airdrop / Non-Standard Aviation
  • Defensive Systems / Communications Systems
  • Night Vision Conversion / Covert Lighting Systems
